Adding Configurations to ESP-IDF projects

In this article, we are going to learn how to write software that uses configuration files using ESP-IDF.

Kconfig

Kconfig is the configuration system used by the Linux kernel and by ESP-IDF. It allows management of project settings through a structured and hierarchical menu system.

It allows developers to write configuration files that specify the available configuration options for a piece of software.

sdkconfig

When an ESP-IDF project is built, a file named sdkconfig is automatically generated. This file contains configurations used by the framework, as well as user defined configurations.

Here is a snippet of an sdkconfig file to give an idea of the format:

1
2
3
4
5
6
7
...
CONFIG_IDF_TARGET_ARCH_XTENSA=y
CONFIG_IDF_TARGET_ARCH="xtensa"
CONFIG_IDF_TARGET="esp32"
CONFIG_IDF_INIT_VERSION="5.2.2"
CONFIG_IDF_TARGET_ESP32=y
...

These configurations are automatically made globally available throughout the project. Most of them are used by ESP-IDF, but all configurations are globally available.

For example, the following code prints the value of the CONFIG_IDF_TARGET_ARCH configuration:

1
2
3
4
5
6
7
8
9
10
11
#include "esp_log.h"
#include "freertos/FreeRTOS.h"

static const char *TAG = "project";

void app_main(void) {
  while (1) {
    ESP_LOGI(TAG, "Architecture: %s!", CONFIG_IDF_TARGET_ARCH);
    vTaskDelay(3000 / portTICK_PERIOD_MS); // Print every 3 seconds
  }
}

To update a configuration value, we can use:

1
idf.py menuconfig

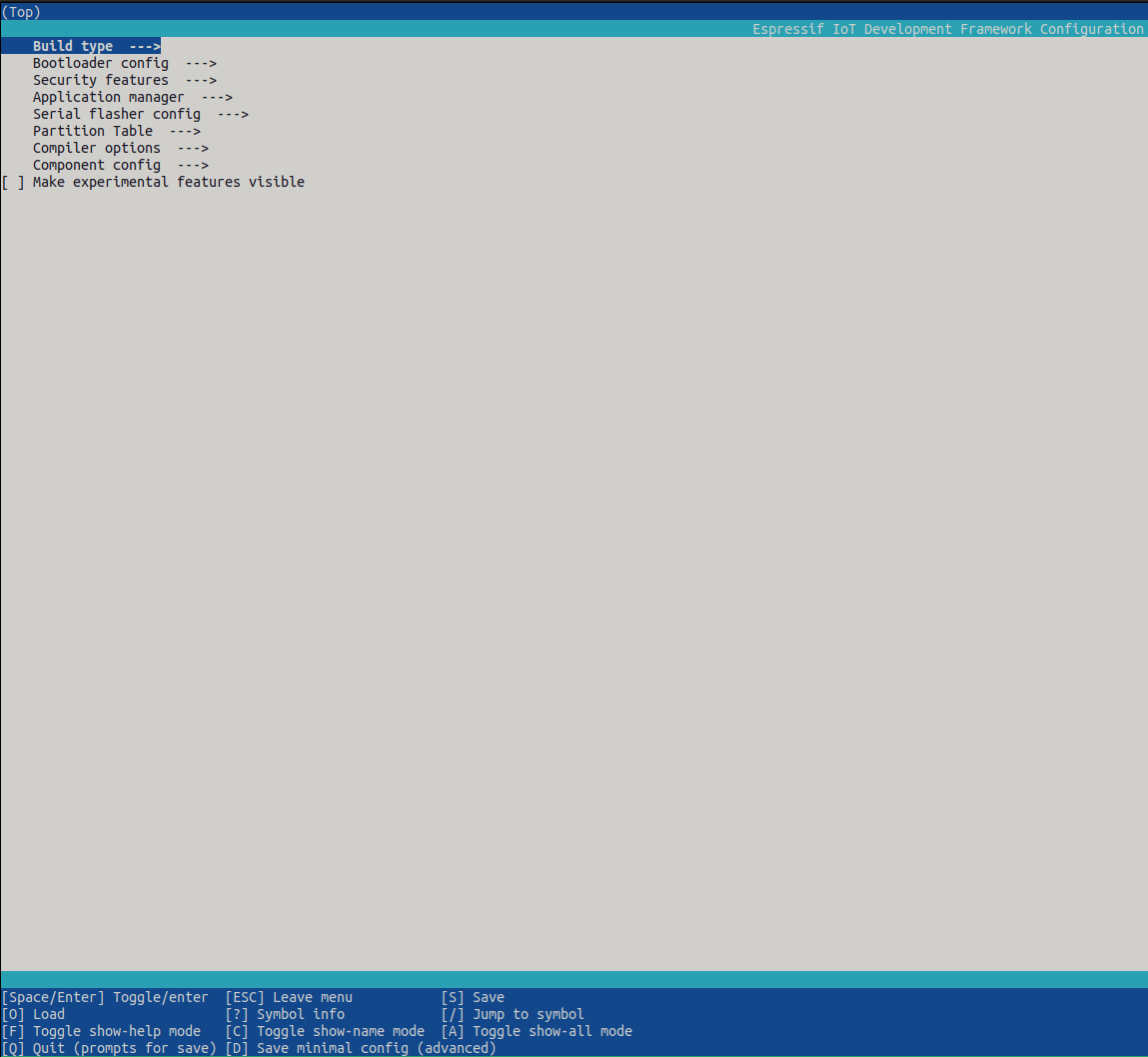

This will open the config editor:

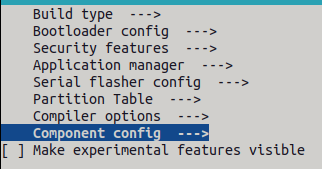

Let’s modify a configuration to see the change take effect. Use the arrow keys to navigate to Component config and press Enter:

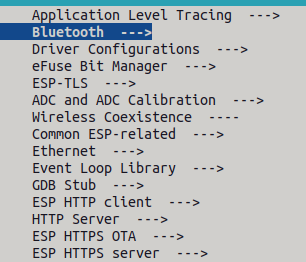

Navigate to Bluetooth and press Enter:

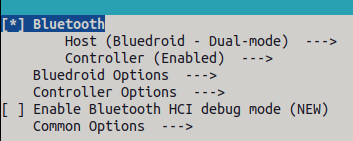

Toggle the Bluetooth option and press S to save the configuration:

Use the Q key to quit menuconfig.

If we inspect our sdkconfig file, we will see that a new configuration was added:

1
CONFIG_BT_ENABLED=y

Some configurations (CONFIG_BT_ENABLED is an example) are only present when they are enabled. i.e. CONFIG_BT_ENABLED is either y or not present at all. This means, we can’t write code like this:

1
2
3
4
5
if (CONFIG_BT_ENABLED) {
  ...
} else {
  ...
}

Because the variable CONFIG_BT_ENABLED would be undefined if it’s not in the configuration. If we want to do something based on the existence of a configuration, we can use the preprocessor:

1
2
3
4
5
#ifdef CONFIG_BT_ENABLED
  ESP_LOGI(TAG, "BT enabled: %i", CONFIG_BT_ENABLED);
#else
  ESP_LOGI(TAG, "BT enabled: 0");
#endif

Custom configurations

To add custom configurations to our project, we need to first define the configuration. We can do this in the file main/Kconfig.projbuild.

Here is a simple example with a single definition:

1
2
3
4
5
6
7
menu "Project config"
config PERSON_NAME
        string "Person Name"
        default "Jose"
        help
            The code will greet this person
endmenu

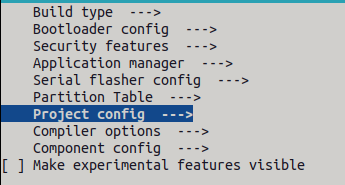

This will add a new top-level section to our menuconfig:

Inside that section we will see our new configuration:

Override defaults

We can use menuconfig to set configuration values, but I find it easier to edit files manually. The sdkconfig file is generated automatically, so it shouldn’t be modified by hand. Instead, we can create a file named sdkconfig.defaults where we can set our desired configuration values.

To set a value for PERSON_NAME, we can use this content:

1
CONFIG_PERSON_NAME="Adrian"

Next time the project is compiled, sdkconfig will be regenerated using this value.

Conclusion

The project configuration documentation for ESP-IDF is extensive, but doesn’t do a great job at showing how to quickly get things working. This article is a simple step-by-step guide to get you started.

As usual, you can find a full working example in my examples repo.
